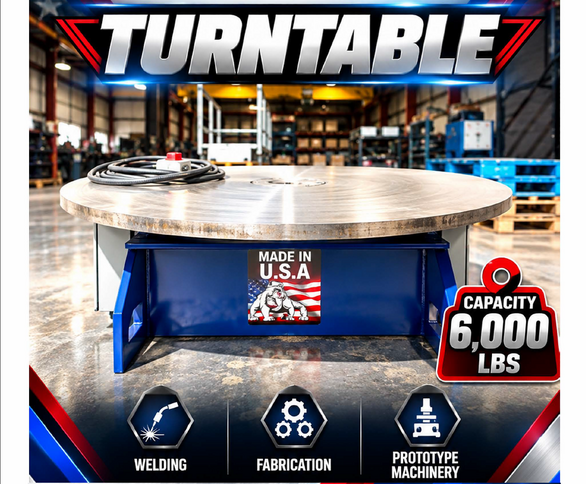

Turntable

CAPACITY
􀀃------------------
• Weight 6,000 pounds
ROTATION
• Motor: Variable speed AC, 3 /4 HP Inverter duty
• Speed range: 0.1 - 1.75 rpm
• Speed accuracy: 2% of set speed
• Rotation torque: 20,800 in-lbs
WEIGHT
• Shipping weight: 1,280 lbs
• Machine weight 1,200 lbs
CONTROLS
• Pendant: Ten-turn potentiometer, rapid, CCW/Stop/CW Selector switch, and
E-Stop with 25 foot cable
• Power: 120 VAC 10-amp 60hz
• Overload protection: 15 amp circuit breaker
TABLE
• Size: 48" diameter x 1 -1/2" thick (approx.)
• Bearing: Heavy-duty slewing bearing
• Ground: 500 amp rotary ground
• Top: Machined steel plate with scribe lines
​

See users manual.
